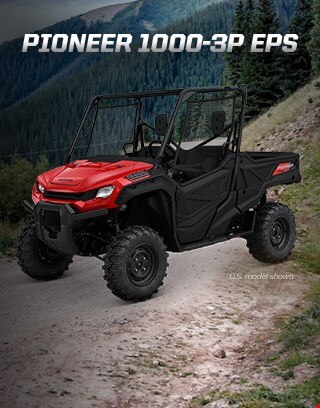

2022 Pioneer 3P EPS. Go beyond extraordinary
MSRP starting from
$ 20,999
Get My Pricing & Finance Options
Key Features
Engine & Drivetrain
Engine & Drivetrain
Chassis & Suspension
Chassis & Suspension
Additional Features
Additional Features
Engine & Drivetrain
  • Powerful performance
    Our ultimate side-by-side needs plenty of power, so we built it around a 999 cc fuel-injected twin-cylinder engine with Honda’s famed four-valve Unicam cylinder head. For 2022, the Pioneer 1000 benefits from increased power in the mid and upper rpm range for improved acceleration and increased towing capacity, making it ready to deliver all the performance you need on the trails or on the job.
  • Smart transmission
    Honda’s fully automatic six-speed Dual-Clutch Transmission delivers more linear throttle and an updated gear selection for 2022, which has been adjusted to match the increased power output while improving the shift rhythm and consistency – with less distracting shift shock. The innovative transmission senses how you’re riding, monitoring throttle input, engine RPM, vehicle speed and more. If you’re going downhill, the Pioneer stays in a lower gear for superior engine braking. And if you want to choose a specific gear, upshift or downshift yourself in demanding conditions or even override the automatic gear selection, the twin paddle-type shifters make it easy and fun.
  • Tackle any terrain
    Venturing over really tricky, rocky terrain, hauling a big load down a steep hill, or need some real hill-climbing ability? The high/low-range sub transmission provides a full 42-percent gear reduction when you switch to the low range.
  • Clever controls
    Quickly and easily choose, via a dash-mounted lever, from 2WD, 4WD, 4WD with differentials locked for the toughest conditions, or Turf mode; perfect for sensitive surfaces like grass fields
Chassis & Suspension
  • Improved steering
    Honda’s automotive-style Electric Power Steering has been updated to improve steering effort and comfort. The EPS helps eliminate bump steer, especially over rocks, logs and on sidehills. Plus, a tilt steering wheel lets you find a position that’s just right for you and the return to center function improves handling and stability.
  • Comfortable ride
    With the independent front and rear suspension you’re virtually assured of a smooth, well-controlled ride with generous ground clearance.
  • Superior stopping power
    With a side-by-side this powerful and capable, you need brakes that are up to the job, too. Honda’s extensive automotive experience means you know the all-wheel disc brake system is up to the task.
Additional Features
  • Roomy seating
    The three-person Pioneer 1000 EPS features a spacious bench – the middle seat is positioned up and forward to maximize comfort and room.
  • Powerful towing
    You can load a full half-ton (1,000 lb.) into the bed. And when it’s time to unload, the bed’s hydraulic-assisted tilting feature makes dumping firewood, gravel, feed or other items easy. And because it’s able to tow a full ton (more than 2,500 lb.) – with a hitch mount – the Pioneer 1000’s can take on big jobs that otherwise would require a tractor or a truck.
  • Secure design
    The Occupant Protection Structure uses large-diameter tubing and includes integrated handholds, recessed top tubes and a more spacious structure to enhance protection. Hard doors and roll-up side nets provide a secure feel and keep mud and debris out of the cabin, while automotive-style three-point belts with an Emergency Locking Retractor mechanism help keep everyone secure.
  • Updated display
    The updated multi-function LCD instrumentation displays fuel level, engine speed (rpm), vehicle speed, tripmeter, odometer, a clock, gear position and much more.
  • New accessories panel
    Your Pioneer now comes ready for accessories thanks to a new integrated accessory panel, as well as new cup holders for taking refreshments out on the trail.
Patriot Red Standard
Patriot Red
2022 Standard
MSRP starting from $20,999
Patriot Red Standard
Patriot Red
2022 Standard
MSRP starting from $20,999
Engine & Drivetrain
Engine Type
Liquid-cooled longitudinally mounted parallel-twin cylinder
999 cc
Bore & Stroke
92 mm x 75.1 mm
Compression Ratio
Valve Train
Unicam, 4 valves
Fuel Delivery
Fuel Injection (PGM-FI), 44 mm throttle body
Fully automatic, Six-speed plus Reverse Dual Clutch Transmission with Sport Mode and Manual Mode with Paddle Shifting. High/Low Range Sub-transmission. Four drive modes include Turf, 2WD, 4WD, and 4WD with differential lock.
Power Steering
Standard, Electric Power Steering
Final Drive
Direct front and rear driveshafts.
Front Suspension
Independent Double A-arm with hydraulic shocks; 268 mm (10.6 in.) travel
Rear Suspension
Independent Double A-arm with adjustable hydraulic shocks; 254 mm (10 in.) travel
Front: 27 x 9 - 14, 6 ply rating Rear: 27 x 11 - 14, 6 ply rating
Front: Dual 210 mm
Rear: Dual 210 mm
3,043 mm (119.8 in)
1,599 mm (63 in)
1,932 mm (76.1 in)
Ground Clearance
345 mm (13.6 in)
2,038 mm (80.2 in)
Curb Weight
730 kg (1,609 lb.) including required fluids and full tank of gas – ready to ride
Fuel Capacity
30 liters, including 6.4-liter reserve
Bed Capacity
454 kg (1,000 lb.)
Cargo Capacity
1,134 kg (2,500 lb.)
Patriot Red
12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
