TRX680 Rincon AT IRS. Flagship performer. Image of ATV rider excitedly speeding down a rough dirt trail along rural countryside on red ATV
Year
MSRP MSRP values shown do not include freight and PDI, applicable fees, license, insurance, registration or taxes (all of which may vary by region). Dealer may sell for less. Dealer order/trade may be necessary. See your dealer for details. starting from
$ 10,399
Get My Pricing & Finance Options
Engine & Drivetrain
Engine & Drivetrain
Chassis & Suspension
Chassis & Suspension
Additional Features
Additional Features
Engine & Drivetrain
  • Improved efficiency

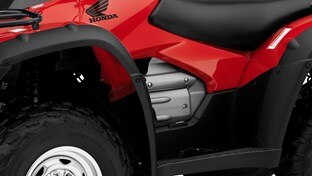

    Powerful 675 cc four-stroke engine is mounted longitudinally in the frame, allowing direct driveshaft alignment to the front and rear wheels for improved drivetrain efficiency. Liquid cooling provides consistent engine operating temperature in extreme conditions for maximum power output and long engine life. The camshaft is located adjacent to the cylinder head, reducing engine height. Together with the semi-dry sump, engine height is further reduced for a low centre of gravity and excellent handling. Four-valve cylinder head with two short pushrods provides a broad powerband for optimum performance and engine efficiency. Dual-plug cylinder head uses two sparkplugs that fire together to help ensure clean, fast, thorough combustion. Remote-mounted fuel pump with internal fuel reservoir maintains consistent fuel-injection performance in rough and varying terrain.
  • Reliable performance
    PGM-FI electronic fuel-injection features a 40 mm throttle body, 12-hole two-pattern injector, and Idle Air Control Valve (IACV) for reliable cold-weather starting and consistent engine performance at high altitudes. Unique temperature indicator uses two sensors to monitor both oil and coolant temperatures. The stainless steel exhaust system provides superior corrosion resistance and minimizes noise levels. Plus, the muffler includes a spark arrester that is USDA Forest Service certified for use in regulated or sensitive environments.
  • Optimum handling, excellent traction
    Unique semi-dry-sump oiling system locates the oil tank inside the engine cases, lowering engine height and allowing optimum engine placement for excellent ground clearance and superb handling. Torque-sensitive front differential provides superior traction compared to conventional limited-slip designs, and reduces torque steer substantially for less steering effort in 4WD mode.
  • Efficient Design, reduced vibration
    Engine design produces low emissions and meets California Air Resources Board (CARB) off-road emissions standards. High-capacity coolant radiator is rated at 20.2 kW for efficient engine cooling in extreme operating conditions. Compact, flat-shaped radiator-fan motor is lightweight and contributes to optimum engine placement. Rubber-cushion engine mounting system and gear-driven counterbalance shaft reduce engine vibration.
  • Smooth operation
    Switchable 2WD/4WD is easily engaged with a simple thumb-switch on the right handlebar. An electromagnetic mechanical clutch unit (EMCU) located on the centre of the propeller shaft engages 4WD with a quiet two-way roller clutch. The system ensures smooth operation by employing a magnetic switching mechanism that engages when front and rear wheel speeds vary by less than 9.6 km/h.
  • Lightweight performance
    The rear driveshaft joins the rear final-drive gearcase at a 77-degree angle, eliminating the weight and complexity of an additional shaft and joints. The design also contributes to the Rincon's considerable 203 mm (8 in.) of rear-wheel travel.
  • Automotive technology
    The automotive-style Honda automatic transmission features a hydraulic torque converter, three hydraulic clutches and an electronic control unit (ECU) to automatically select one of three forward gears and one reverse gear. The ECU monitors throttle opening, vehicle speed, engine rpm, gear selector position, brake application and engine oil temperature.
  • Electric Shift features engine braking
    The Honda automatic transmission shifts electronically — eliminating unsightly and trouble-prone vacuum lines — and features engine braking, unlike conventional belt-drive designs. Electric Shift Program (ESP) allows the rider to manually select gears by simply pressing either the arrow up or the arrow down push-buttons mounted on the left handlebar to upshift or downshift. A handlebar-mounted control switches the automatic transmission between ESP mode and automatic operation.
  • Maintenance-free design
    The transmission features a filtration system to protect against external contamination. The compact and maintenance-free design means there are no belts to wear out and replace. Using multi-filtered engine oil as hydraulic fluid, the design also simplifies maintenance and ensures an adequate oil supply in all operating conditions. Standard high-flow oil cooler assures optimal engine lubrication under difficult operating conditions. A closed-crankcase vent system safeguards against engine-oil contamination.
Chassis & Suspension
  • Exceptional grounExceptional ground clearanced clearance

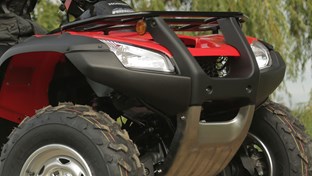

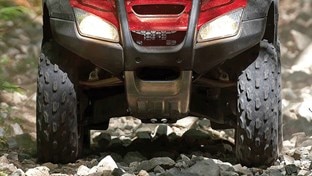

    A rugged steel perimeter frame and four-wheel independent suspension provide an exceptional 232 mm (9.1 in.) of ground clearance.
  • Reduced weight
    A separate rear frame utilizes the final-drive gear case as a stressed member, reducing overall vehicle weight.
  • Independent Front & Rear Suspension
    Independent double-wishbone front suspension uses premium shock absorbers to provide 175 mm (6.9 in.) of suspension travel for a plush, comfortable ride. Independent Rear Suspension (IRS) helps ensure constant tire contact with the ground for superior traction while also providing an ultra-smooth ride. The Rincon's steering mechanism allows light steering effort and a tight turning radius of 3.3 metres (10.8 ft.).
  • Strong and lightweight
    Lightweight single-tube gas-charged rear shocks and an anti-sway bar provide plush, well-controlled damping throughout the Rincon's exceptional 203 mm (8 in.) of rear-wheel travel.
  • Controlled braking
    Dual front disc brake calipers feature a patented built-in scraper system that removes mud and snow from inside the front wheel to help prevent build-up of debris between caliper and rim for consistent braking performance. Brake pads feature thick, long-wear material with improved mud durability, feel and control. Pads feature an internal scraper that gives an audible warning when pad life is low.
  • Light and compact
    The centrally located hydraulic disc brake and self-adjusting mechanical rear parking brake are mounted on the rear driveshaft, further reducing unsprung weight and contributing to the Rincon's considerable ground clearance.
  • Performance wheels, smooth ride
    Radial tires provide a smooth ride and exceptional handling. Tough, large-diameter 25 x 8 - 12 front tires and 25 x 10 - 12 rear tires provide added ground clearance. Attractive large-diameter 12-inch aluminum wheels further reduce unsprung weight and contribute to superb handling.
Additional Features
  • Intuitive display
    Multi-function LCD digital instrumentation is compact, tough and waterproof, featuring large readouts for gear selector position, speedometer, odometer, resettable tripmeter and hourmeter/clock. Instrument housing includes LED lights for Drive, Neutral, Reverse, temperature warning and FI warning indicator and a fuel gauge.
  • Added features
    Durable, comfortable, easy-to-use controls include a keyed ignition switch for added security and a parking brake. Convenient electric start plus a lightweight auxiliary recoil starter with an automatic internal decompression system ensure an easy start every time. A tough rubber cover protects the gear-shift button from dirt, water and mud.
  • Waterproof accessory power
    Waterproof accessory socket provides 12-volt, 10-amp power with a built-in temperature-type fuse.
  • All-day comfort
    Thickly padded seat uses dual-density foam to provide excellent riding comfort and comfortable riding position.
  • Great fuel range
    Large, lightweight plastic fuel tank with 16.8-litre capacity, including 4.5-litre reserve.
  • Additional storage
    Side-opening compartment has 4 litres of storage capacity and can be opened when the rider is seated.
  • Excellent warranty
    1 year, transferable limited warranty.
Colours
Red Rincon 680 AT IRS
Red
2017 Rincon 680 AT IRS
MSRP starting from $10,399
MSRP values shown do not include freight and PDI, applicable fees, license, insurance, registration or taxes (all of which may vary by region). Dealer may sell for less. Dealer order/trade may be necessary. See your dealer for details.
Colours
Red Rincon 680 AT IRS
Red
2017 Rincon 680 AT IRS
MSRP starting from $10,399
Specifications
Engine & Drivetrain
Engine Type
Liquid-cooled longitudinally mounted single-cylinder 4-stroke
Displacement
675 cc
Bore & Stroke
102 mm x 82.6 mm
Compression Ratio
9.2:1
Valve Train
OHV, 4 valves
Fuel Delivery
PGM-FI electronic fuel injection
Transmission
Fully automatic electronically controlled automotive-type three-speed with selectable Electric Shift (ESP) and reverse
Power Steering
Not Available
Final Drive
2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing front differential
Front Suspension
Independent double-wishbone with hydraulic shocks; 175 mm (6.9 in.) travel
Rear Suspension
Independent double-wishbone with hydraulic shocks; 203 mm (8 in.) travel
Tires
Front: 25 x 8 - 12 Rear: 25 x 10 - 12
Brakes
Front: dual 180 mm hydraulic discs Rear: 170 mm hydraulic disc
Length
2,117 mm (83.3 in.)
Width
1,185 mm (46.7 in.)
Ground Clearance
232 mm (9.1 in.)
Seat Height
876 mm (34.5 in.)
Wheelbase
1,284 mm (50.6 in.)
Curb Weight
298 kg (657 lbs.) including required fluids and full tank of gas - ready to ride
Fuel Capacity
16.8 liters, incl. 4.5-liter reserve
Colour
Red
Warranty
12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
